RightMark Audio Analyzer test report
| Testing device | Input ASUS XONAR D2 |
| Sampling mode | 16-bit, 44 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.5 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.03, -0.04 |
Excellent |
| Noise level, dB (A) | -94.6 |
Very good |
| Dynamic range, dB (A) | 94.3 |
Very good |
| THD, % | 0.0005 |
Excellent |
| THD + Noise, dB (A) | -88.1 |
Good |
| IMD + Noise, % | 0.0051 |
Excellent |
| Stereo crosstalk, dB | -94.5 |
Excellent |
| IMD at 10 kHz, % | 0.0053 |
Excellent |
| General performance | Excellent |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.93, +0.03 |
| From 40 Hz to 15 kHz, dB | -0.04, +0.03 |

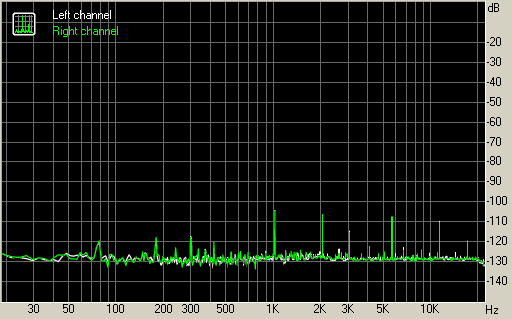

Noise level
Left |
Right |
|
| RMS power, dB | -94.2 |
-94.2 |
| RMS power (A-weighted), dB | -94.6 |
-94.6 |
| Peak level, dB FS | -82.6 |
-82.6 |
| DC offset, % | +0.0 |
+0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +93.8 |
+93.8 |
| Dynamic range (A-weighted), dB | +94.3 |
+94.3 |
| DC offset, % | -0.00 |
-0.00 |
THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0005 |
+0.0005 |
| THD + Noise, % | +0.0041 |
+0.0041 |
| THD + Noise (A-weighted), % | +0.0039 |
+0.0039 |
Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0051 |
+0.0051 |
| IMD + Noise (A-weighted), % | +0.0049 |
+0.0048 |

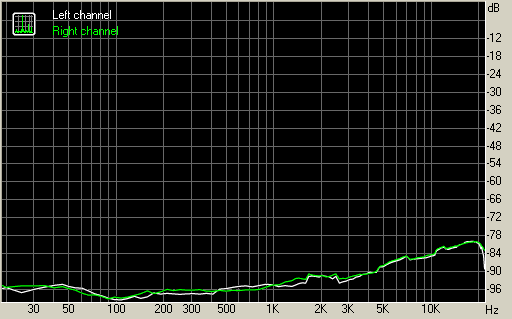

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -98 |
-98 |
| Crosstalk at 1000 Hz, dB | -94 |
-93 |
| Crosstalk at 10000 Hz, dB | -84 |
-83 |

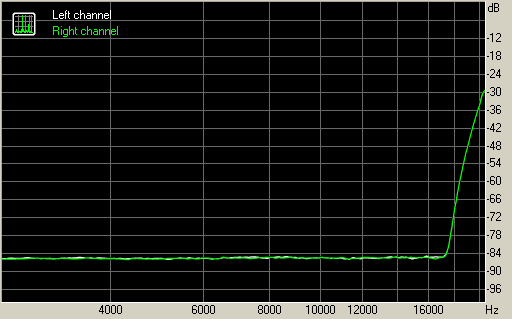

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0052 |
0.0052 |
| IMD + Noise at 10000 Hz, | 0.0054 |
0.0055 |
| IMD + Noise at 15000 Hz, | 0.0052 |
0.0054 |
