RightMark Audio Analyzer test report
| Testing device | ASUS Xonar D2 Audio |
| Sampling mode | 24-bit, 96 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.5 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.05, -0.05 |
Excellent |
| Noise level, dB (A) | -99.1 |
Excellent |
| Dynamic range, dB (A) | 99.2 |
Excellent |
| THD, % | 0.0012 |
Excellent |
| THD + Noise, dB (A) | -91.4 |
Very good |
| IMD + Noise, % | 0.0032 |
Excellent |
| Stereo crosstalk, dB | -97.7 |
Excellent |
| IMD at 10 kHz, % | 0.0031 |
Excellent |
| General performance | Excellent |

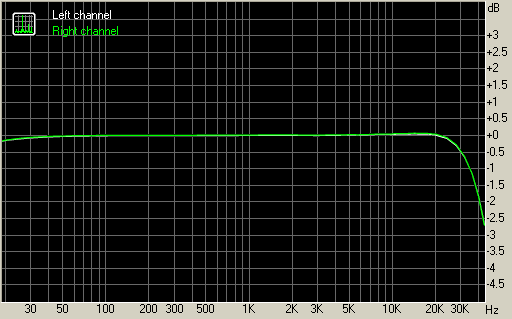

Frequency response
| From 20 Hz to 20 kHz, dB | -0.15, +0.05 |
| From 40 Hz to 15 kHz, dB | -0.05, +0.05 |

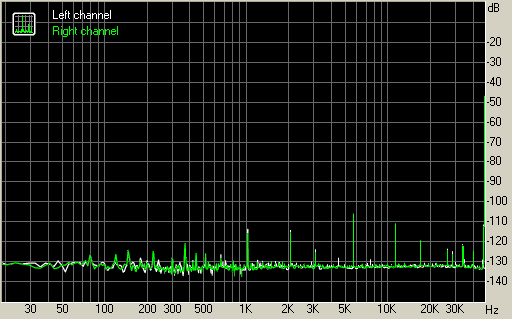

Noise level
Left |
Right |
|
| RMS power, dB | -98.4 |
-98.5 |
| RMS power (A-weighted), dB | -99.0 |
-99.3 |
| Peak level, dB FS | -82.3 |
-82.3 |
| DC offset, % | -0.0 |
-0.0 |

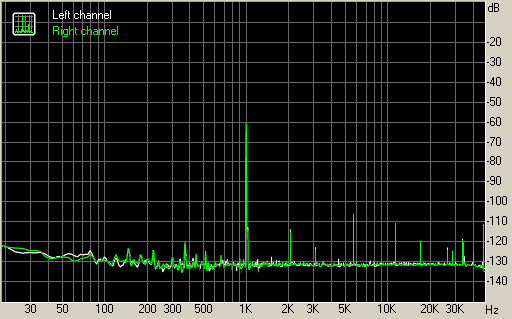

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +98.4 |
+98.5 |
| Dynamic range (A-weighted), dB | +99.1 |
+99.2 |
| DC offset, % | -0.00 |
-0.00 |

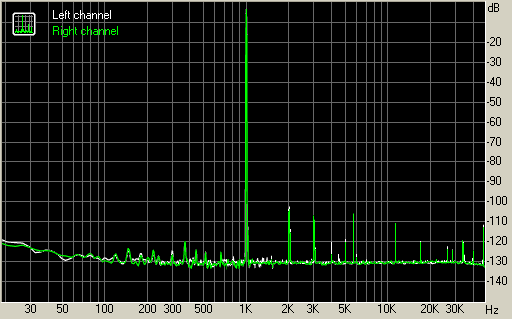

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0013 |
+0.0012 |
| THD + Noise, % | +0.0027 |
+0.0026 |
| THD + Noise (A-weighted), % | +0.0027 |
+0.0027 |
Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0032 |
+0.0032 |
| IMD + Noise (A-weighted), % | +0.0028 |
+0.0028 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -93 |
-95 |
| Crosstalk at 1000 Hz, dB | -97 |
-96 |
| Crosstalk at 10000 Hz, dB | -93 |
-92 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0031 |
0.0030 |
| IMD + Noise at 10000 Hz, | 0.0032 |
0.0031 |
| IMD + Noise at 15000 Hz, | 0.0031 |
0.0032 |
