RightMark Audio Analyzer test report
| Testing device | ASUS Xonar D2 Audio |
| Sampling mode | 24-bit, 44 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.5 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.03, -0.05 |
Excellent |
| Noise level, dB (A) | -100.3 |
Excellent |
| Dynamic range, dB (A) | 95.2 |
Excellent |
| THD, % | 0.0066 |
Very good |
| THD + Noise, dB (A) | -81.1 |
Good |
| IMD + Noise, % | 0.011 |
Very good |
| Stereo crosstalk, dB | -102.1 |
Excellent |
| IMD at 10 kHz, % | 0.0097 |
Very good |
| General performance | Excellent |

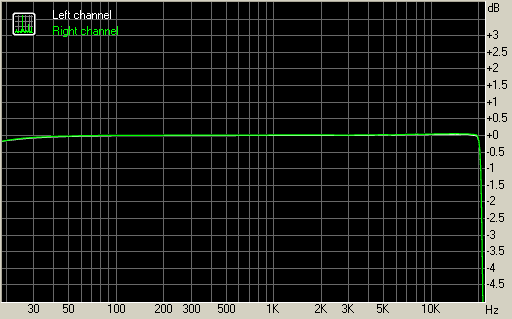

Frequency response
| From 20 Hz to 20 kHz, dB | -0.16, +0.03 |
| From 40 Hz to 15 kHz, dB | -0.05, +0.03 |

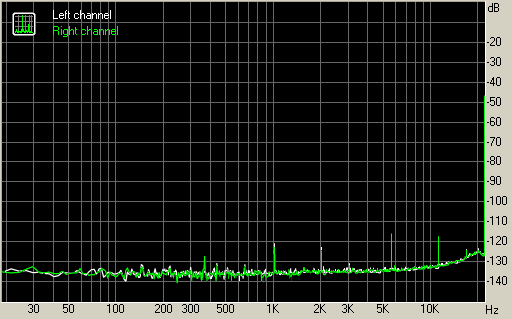

Noise level
Left |
Right |
|
| RMS power, dB | -97.3 |
-97.4 |
| RMS power (A-weighted), dB | -100.3 |
-100.4 |
| Peak level, dB FS | -86.7 |
-86.7 |
| DC offset, % | -0.0 |
-0.0 |

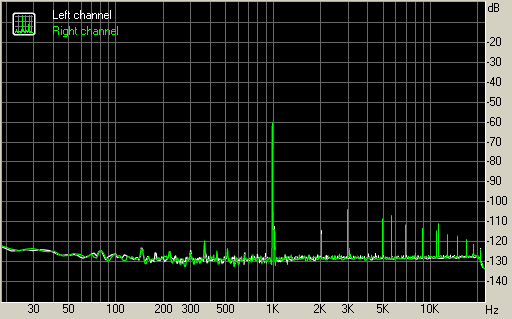

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +94.6 |
+94.6 |
| Dynamic range (A-weighted), dB | +95.1 |
+95.2 |
| DC offset, % | -0.00 |
-0.00 |

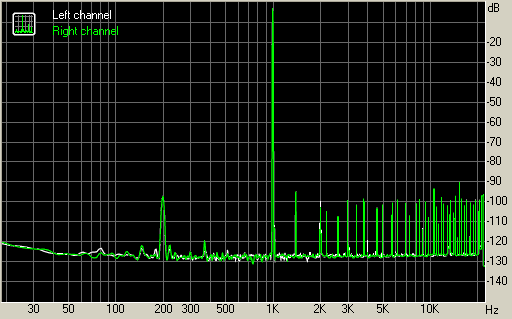

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0066 |
+0.0066 |
| THD + Noise, % | +0.0103 |
+0.0103 |
| THD + Noise (A-weighted), % | +0.0089 |
+0.0088 |

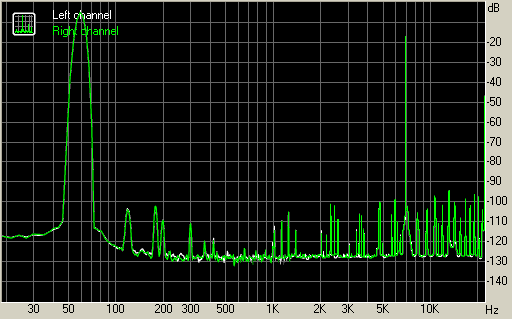

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0110 |
+0.0110 |
| IMD + Noise (A-weighted), % | +0.0090 |
+0.0090 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -103 |
-103 |
| Crosstalk at 1000 Hz, dB | -101 |
-101 |
| Crosstalk at 10000 Hz, dB | -97 |
-97 |

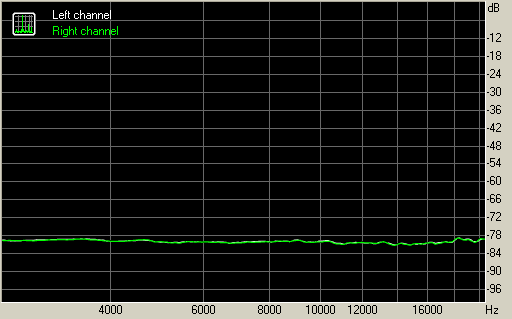

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0098 |
0.0100 |
| IMD + Noise at 10000 Hz, | 0.0102 |
0.0099 |
| IMD + Noise at 15000 Hz, | 0.0091 |
0.0092 |
