RightMark Audio Analyzer test report
| Testing device | ASUS Xonar D2 Audio |
| Sampling mode | 16-bit, 48 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.5 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.03, -0.02 |
Excellent |
| Noise level, dB (A) | -94.6 |
Very good |
| Dynamic range, dB (A) | 94.6 |
Very good |
| THD, % | 0.0008 |
Excellent |
| THD + Noise, dB (A) | -88.3 |
Good |
| IMD + Noise, % | 0.0051 |
Excellent |
| Stereo crosstalk, dB | -94.9 |
Excellent |
| IMD at 10 kHz, % | 0.0053 |
Excellent |
| General performance | Excellent |

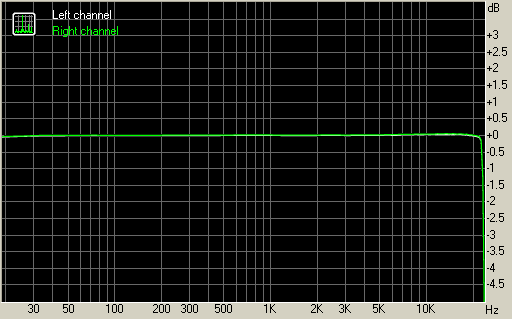

Frequency response
| From 20 Hz to 20 kHz, dB | -0.05, +0.03 |
| From 40 Hz to 15 kHz, dB | -0.02, +0.03 |
Noise level
Left |
Right |
|
| RMS power, dB | -93.6 |
-93.6 |
| RMS power (A-weighted), dB | -94.6 |
-94.6 |
| Peak level, dB FS | -82.3 |
-82.3 |
| DC offset, % | -0.0 |
-0.0 |

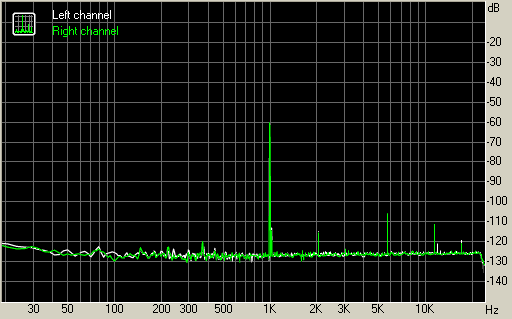

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +93.6 |
+93.6 |
| Dynamic range (A-weighted), dB | +94.6 |
+94.6 |
| DC offset, % | -0.00 |
-0.00 |

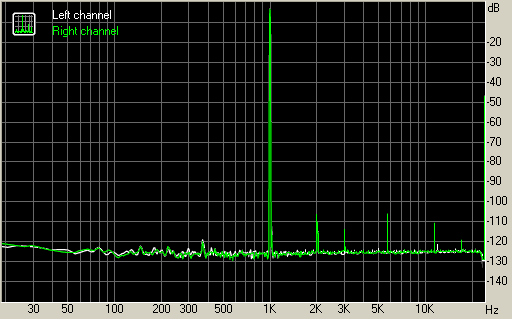

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0006 |
+0.0009 |
| THD + Noise, % | +0.0042 |
+0.0042 |
| THD + Noise (A-weighted), % | +0.0038 |
+0.0039 |

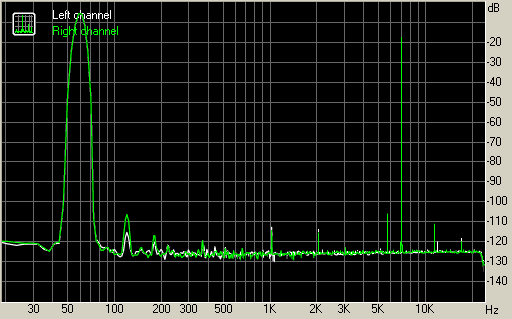

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0051 |
+0.0051 |
| IMD + Noise (A-weighted), % | +0.0045 |
+0.0045 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -96 |
-95 |
| Crosstalk at 1000 Hz, dB | -93 |
-95 |
| Crosstalk at 10000 Hz, dB | -89 |
-89 |

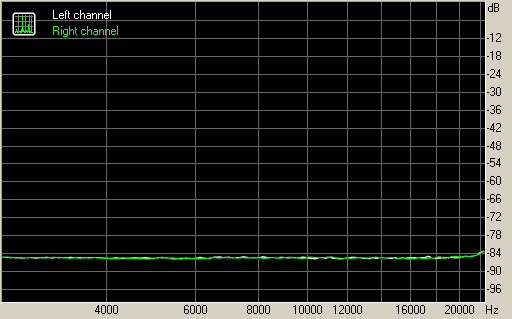

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0053 |
0.0053 |
| IMD + Noise at 10000 Hz, | 0.0054 |
0.0055 |
| IMD + Noise at 15000 Hz, | 0.0053 |
0.0052 |
