[MME] SE-200PCI RCAOut
[MME] SE-200PCI LineOut

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz




Summary

Test[MME] SE-200PCI RCAOut[MME] SE-200PCI LineOut
Frequency response (from 40 Hz to 15 kHz), dB: +0.03, -0.20+0.02, -0.15
Noise level, dB (A): -101.7-99.0
Dynamic range, dB (A): 98.499.1
THD, %: 0.00300.0015
IMD + Noise, %: 0.00420.0033
Stereo crosstalk, dB: -98.3-94.7



Frequency response

Spectrum graph


Noise level

Spectrum graph

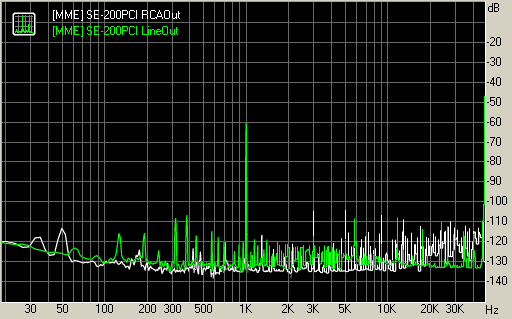

Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph


Intermodulation distortion

Spectrum graph


Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 6.0
