RightMark Audio Analyzer test report
| Testing device | ProDigy 7.1 XT HP |
| Sampling mode | 24-bit, 192 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.5 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.04, -0.29 |
Very good |
| Noise level, dB (A) | -103.5 |
Excellent |
| Dynamic range, dB (A) | 95.1 |
Excellent |
| THD, % | 0.0016 |
Excellent |
| THD + Noise, dB (A) | -88.7 |
Good |
| IMD + Noise, % | 0.0048 |
Excellent |
| Stereo crosstalk, dB | -93.2 |
Excellent |
| IMD at 10 kHz, % | 0.0050 |
Excellent |
| General performance | Excellent |

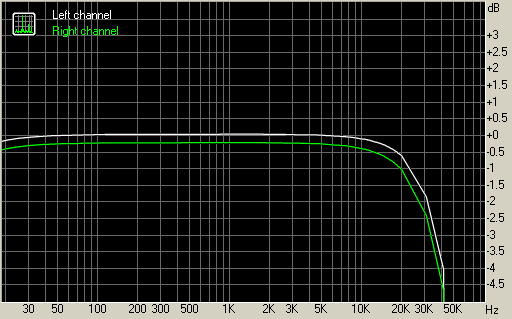

Frequency response
| From 20 Hz to 20 kHz, dB | -0.59, +0.04 |
| From 40 Hz to 15 kHz, dB | -0.29, +0.04 |

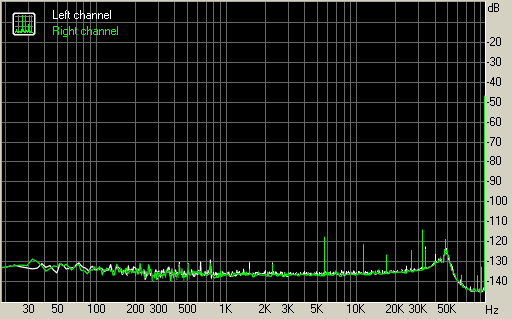

Noise level
Left |
Right |
|
| RMS power, dB | -102.3 |
-102.4 |
| RMS power (A-weighted), dB | -103.4 |
-103.5 |
| Peak level, dB FS | -80.9 |
-80.9 |
| DC offset, % | -0.0 |
-0.0 |

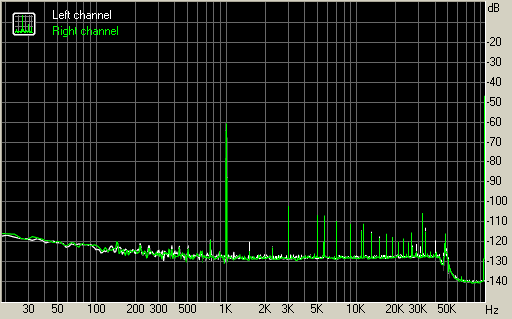

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +94.6 |
+94.6 |
| Dynamic range (A-weighted), dB | +95.1 |
+95.1 |
| DC offset, % | -0.00 |
-0.00 |

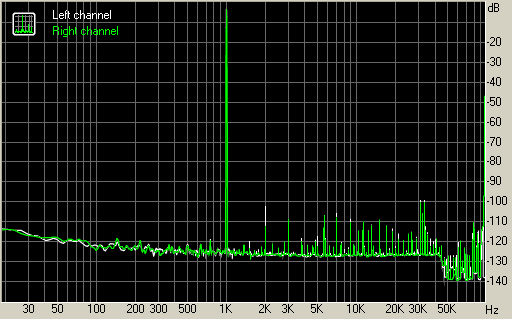

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0018 |
+0.0015 |
| THD + Noise, % | +0.0040 |
+0.0040 |
| THD + Noise (A-weighted), % | +0.0037 |
+0.0036 |
Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0048 |
+0.0048 |
| IMD + Noise (A-weighted), % | +0.0041 |
+0.0043 |

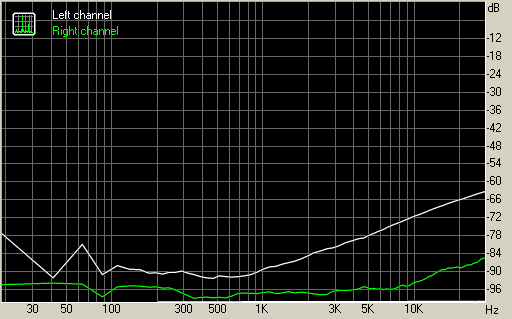

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -88 |
-96 |
| Crosstalk at 1000 Hz, dB | -88 |
-96 |
| Crosstalk at 10000 Hz, dB | -71 |
-93 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0050 |
0.0052 |
| IMD + Noise at 10000 Hz, | 0.0049 |
0.0049 |
| IMD + Noise at 15000 Hz, | 0.0052 |
0.0052 |
