RightMark Audio Analyzer test report
| Testing device | SE-U33GX Audio RCA Out |
| Sampling mode | 16-bit, 48 kHz |
| Interface | MME |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.6 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | 0.0 dB / 0.0 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.03, -0.22 |
Very good |
| Noise level, dB (A) | -97.0 |
Excellent |
| Dynamic range, dB (A) | 95.2 |
Excellent |
| THD, % | 0.0029 |
Excellent |
| THD + Noise, dB (A) | -83.5 |
Good |
| IMD + Noise, % | 0.015 |
Very good |
| Stereo crosstalk, dB | -98.8 |
Excellent |
| IMD at 10 kHz, % | 0.0063 |
Excellent |
| General performance | Excellent |

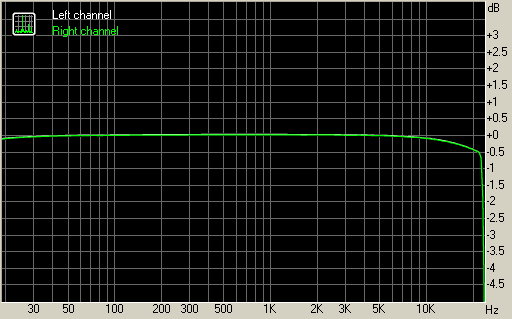

Frequency response
| From 20 Hz to 20 kHz, dB | -0.42, +0.03 |
| From 40 Hz to 15 kHz, dB | -0.22, +0.03 |

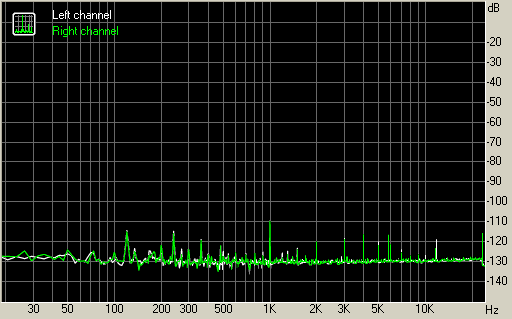

Noise level
Left |
Right |
|
| RMS power, dB | -96.0 |
-96.0 |
| RMS power (A-weighted), dB | -97.0 |
-97.0 |
| Peak level, dB FS | -82.5 |
-82.5 |
| DC offset, % | -0.0 |
-0.0 |

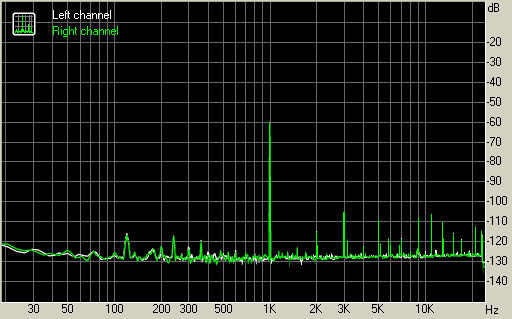

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +94.3 |
+94.3 |
| Dynamic range (A-weighted), dB | +95.3 |
+95.2 |
| DC offset, % | -0.00 |
-0.00 |

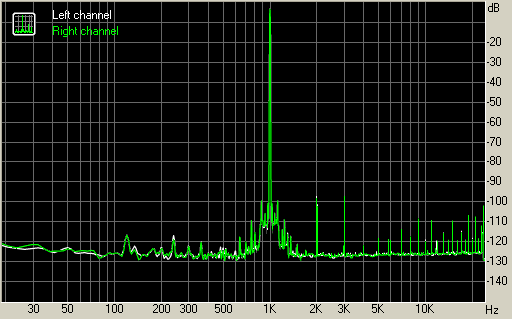

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0029 |
+0.0029 |
| THD + Noise, % | +0.0063 |
+0.0063 |
| THD + Noise (A-weighted), % | +0.0068 |
+0.0067 |

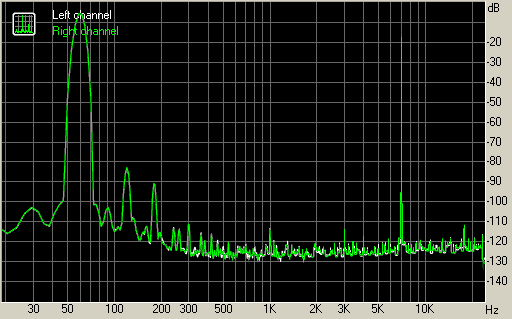

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0151 |
+0.0156 |
| IMD + Noise (A-weighted), % | +0.0068 |
+0.0071 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -97 |
-100 |
| Crosstalk at 1000 Hz, dB | -98 |
-98 |
| Crosstalk at 10000 Hz, dB | -94 |
-94 |

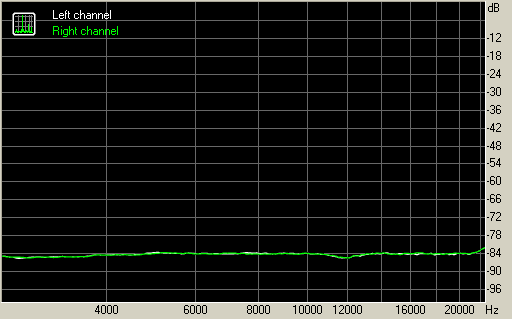

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0066 |
0.0063 |
| IMD + Noise at 10000 Hz, | 0.0064 |
0.0064 |
| IMD + Noise at 15000 Hz, | 0.0062 |
0.0062 |
