RightMark Audio Analyzer test report
| Testing device | SE-U33GX RCA In |
| Sampling mode | 16-bit, 44 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.6 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.4 dB / 0.0 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.05, -0.05 |
Excellent |
| Noise level, dB (A) | -91.3 |
Very good |
| Dynamic range, dB (A) | 91.4 |
Very good |
| THD, % | 0.0090 |
Very good |
| THD + Noise, dB (A) | -78.2 |
Average |
| IMD + Noise, % | 0.011 |
Very good |
| Stereo crosstalk, dB | -92.3 |
Excellent |
| IMD at 10 kHz, % | 0.013 |
Very good |
| General performance | Very good |

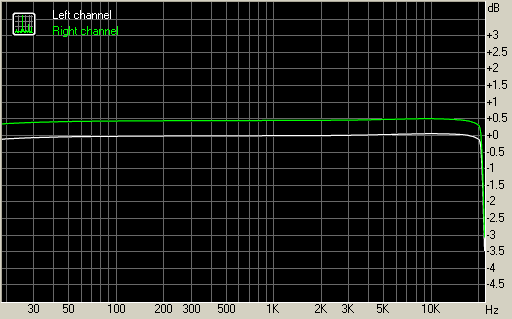

Frequency response
| From 20 Hz to 20 kHz, dB | -0.11, +0.05 |
| From 40 Hz to 15 kHz, dB | -0.05, +0.05 |

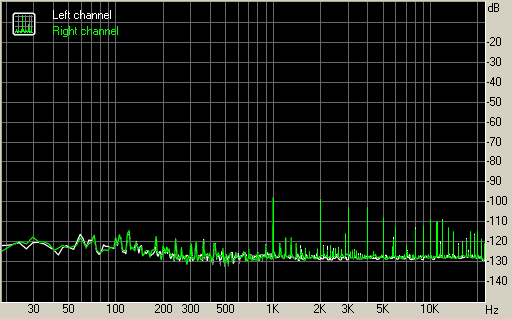

Noise level
Left |
Right |
|
| RMS power, dB | -91.5 |
-91.4 |
| RMS power (A-weighted), dB | -91.3 |
-91.2 |
| Peak level, dB FS | -77.2 |
-77.2 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +91.6 |
+91.6 |
| Dynamic range (A-weighted), dB | +91.4 |
+91.4 |
| DC offset, % | -0.00 |
-0.00 |

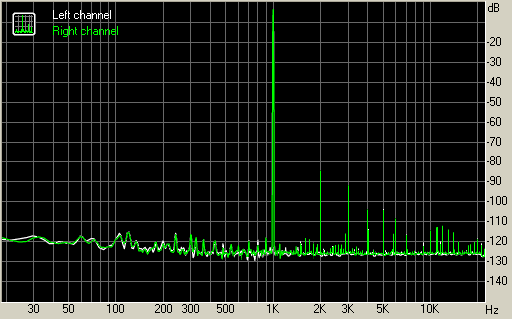

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0089 |
+0.0091 |
| THD + Noise, % | +0.0098 |
+0.0100 |
| THD + Noise (A-weighted), % | +0.0122 |
+0.0124 |

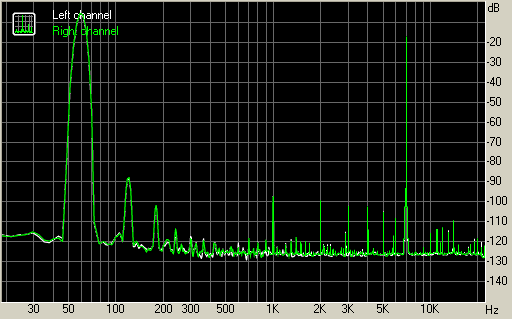

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0116 |
+0.0114 |
| IMD + Noise (A-weighted), % | +0.0089 |
+0.0087 |

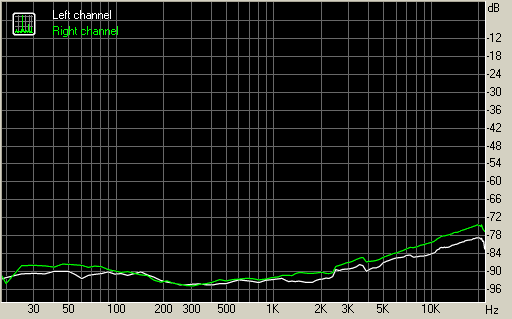

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -90 |
-89 |
| Crosstalk at 1000 Hz, dB | -92 |
-91 |
| Crosstalk at 10000 Hz, dB | -83 |
-79 |

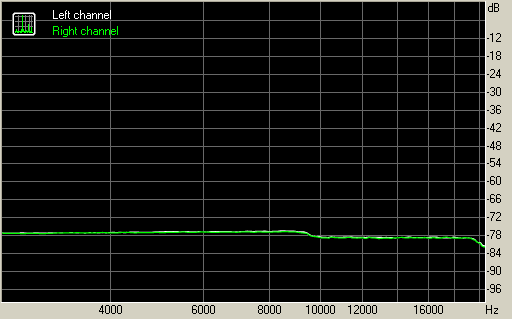

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0146 |
0.0142 |
| IMD + Noise at 10000 Hz, | 0.0120 |
0.0117 |
| IMD + Noise at 15000 Hz, | 0.0117 |
0.0116 |
