RightMark Audio Analyzer test report
| Testing device | SoundMAX HD Audio |
| Sampling mode | 16-bit, 44 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.5 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.13, -0.05 |
Very good |
| Noise level, dB (A) | -93.0 |
Very good |
| Dynamic range, dB (A) | 91.3 |
Very good |
| THD, % | 0.0051 |
Very good |
| THD + Noise, dB (A) | -70.0 |
Average |
| IMD + Noise, % | 0.045 |
Good |
| Stereo crosstalk, dB | -92.9 |
Excellent |
| IMD at 10 kHz, % | 0.023 |
Good |
| General performance | Very good |

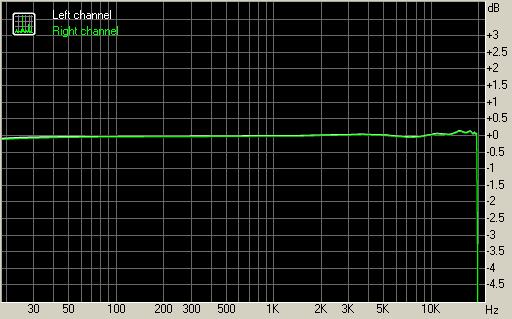

Frequency response
| From 20 Hz to 20 kHz, dB | -3.74, +0.14 |
| From 40 Hz to 15 kHz, dB | -0.05, +0.13 |

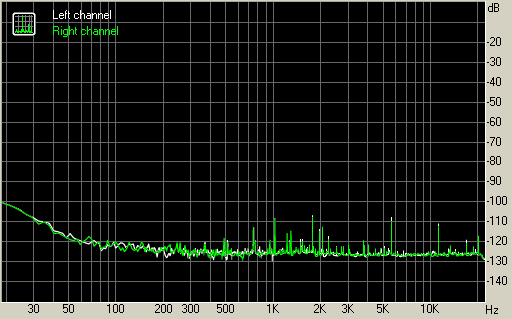

Noise level
Left |
Right |
|
| RMS power, dB | -91.6 |
-91.7 |
| RMS power (A-weighted), dB | -93.0 |
-93.1 |
| Peak level, dB FS | -71.4 |
-71.4 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +90.5 |
+90.5 |
| Dynamic range (A-weighted), dB | +91.2 |
+91.3 |
| DC offset, % | -0.00 |
-0.00 |

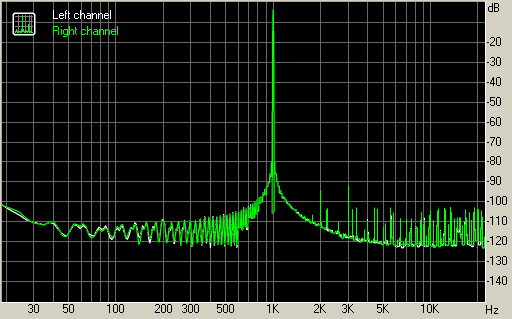

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0049 |
+0.0052 |
| THD + Noise, % | +0.0287 |
+0.0288 |
| THD + Noise (A-weighted), % | +0.0315 |
+0.0316 |

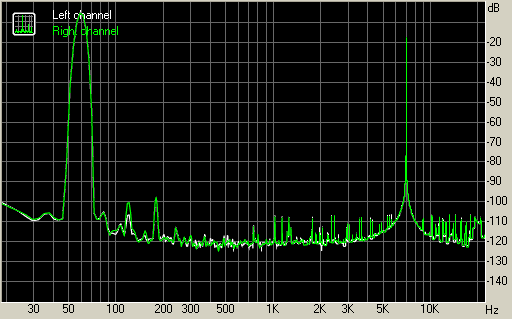

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0450 |
+0.0450 |
| IMD + Noise (A-weighted), % | +0.0447 |
+0.0448 |

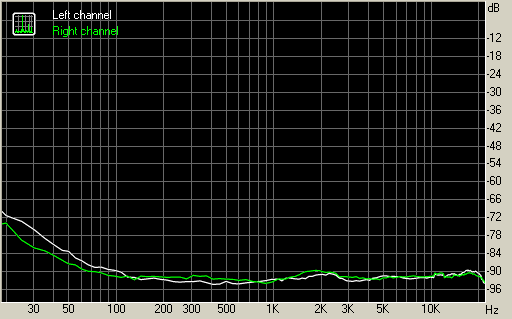

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -89 |
-91 |
| Crosstalk at 1000 Hz, dB | -92 |
-92 |
| Crosstalk at 10000 Hz, dB | -91 |
-91 |

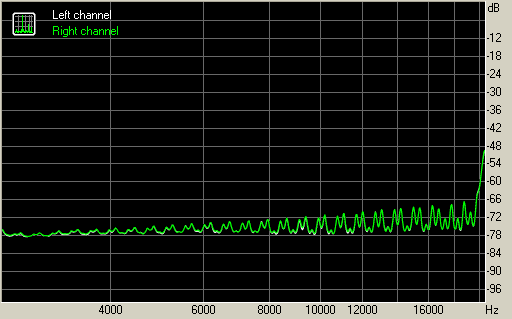

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0136 |
0.0140 |
| IMD + Noise at 10000 Hz, | 0.0181 |
0.0186 |
| IMD + Noise at 15000 Hz, | 0.0366 |
0.0369 |
